RO Plants Manufacturers

Industrial RO Plant Manufacturers

Swati Water Purification is a leading RO Plants manufacturers in Ahmedabad, Gandhinagar, Gujarat, India, providing high-recovery water purification systems. We design custom Industrial Reverse Osmosis Plant (250 LPH to 60,000 LPH+) featuring energy-efficient pumps, and advanced PLC automation. Our systems are built for industrial standards, ensuring high TDS removal for textile, cooling towers, boiler, dairy products, metal processing, steel & alloys, hospitals, constructions, paint, mining, Hotels & resorts, pharma and food industries etc... From brackish water RO to desalination units, we offer turnkey installation and reliable water quality and 100 % regulatory compliance.

An RO (Reverse Osmosis) Plant Is a Water Treatment System That Uses A Semi-Permeable Membrane To Remove Contaminants, Salts and Other Impurities From Water. The Process is Commonly Used for Purifying Wastewater or Brackish Water for Drinking and Industrial Use.

Capacities Of RO Plants

No	Type	Capacities
1	Small-Scale Industrial RO Plant	100 LPH – 2,000 LPH
2	Medium-Scale Industrial RO Plant	3,000 LPH – 20,000 LPH
3	Large-Scale Industrial RO Plant	20,000 LPH – 1,000,000 LPH (Or More).

Technical Specification

Specification	Details
Flow Rate	100 LPH - 1,000,000 LPH
Material	FRP \| MSEP
Membrane Type	High-rejection Thin Film Composite (TFC)
Control	Manual \| Automatic (PLC \|HMI)
Recovery Rate	Up to 70%

How to Work:

• Water Enters the Plant As raw Water (Brine Or Wastewater)

• Pre-treatment Filters out Larger Contaminants.

• High-Pressure Pump Forces Water through the RO Membrane.

• Membrane Separation Produces Clean Water (Permeate) and Concentrates Waste (Reject Water).

• Post-Treatment Ensures Water Quality (Adjust pH, UV Treatment and Mineralization).

• Clean Water is stored and ready for Use.

Here is a simple look at the common headaches and the big problems it solves.

Common Technical Issues (Headaches)

1. Membrane Scaling (The “Chalk” Build-up)

• The Issue: RO water often contains minerals like calcium and magnesium. As the pure water passes through the membrane, these minerals get left behind and “crust over” the surface.

• The Result: Think of it like a showerhead getting clogged with white crust. The plant has to work much harder (using more electricity) to push water through and eventually, the water flow stops.

2. Biofouling (The “Sliming”)

• The Issue: Bacteria love the surface of RO Membranes. Even a tiny amount of bacteria can grow into a thin layer of “Slime” or biofilm.

• The Result: This slime blocks the microscope holes in the membrane. It also smells bad and can contaminate the clean water.

3. Membrane Fouling (The “Plug”)

• The Issue: If the “pre-filters” (the stages before the RO) fail, bits of sand, silt or organic matter hit the RO membrane.

• The Result: Unlike scaling, which can sometimes be washed away with chemicals, physical fouling can permanently scratch or tear the delicate membrane, which is very expensive to replace.

4. High Pressure & Energy Use

• The Issue: To work, RO needs a lot of pressure-sometimes up to 1,000 psi.

• The Result: This requires massive pumps. If a seal leaks or a pipe vibrates too much, the whole system can shut down instantly. It is also expensive to run because it uses a lot of electricity.

Problems Solved by RO Plants (The Benefits)

1. Turning “Bad” Water Into “Process” Water

Most factories can’t use regular tap water because the minerals would rust their machines or ruin their products (like soda or medicine), RO removes 99% of dissolved solids, providing a “blank slate” of pure water.

2. Desalination (Making Seawater Drinkable)

In dry areas near the ocean, RO is a lifesaver. It is the most efficient way to take salty seawater and turn it into fresh drinking water for entire cities.

3. Wastewater Recycling

Instead of dumping dirty industrial water into a river, a factory can run it through an RO plant.

• The Solution: The plant cleans the water so well that the factory can use the same water over and over again, saving money and the environment.

4. Protecting High-Pressure Boilers

In power plants, water is turned into steam to spin turbines. Even a tiny amount of salt in that steam would cause an explosion or a meltdown. RO ensures the water is so pure that the machines stay safe for decades.

Frequently Asked Questions (FAQ)

1. What is the typical price of an Industrial RO Plant?

The Industrial RO Plant price varies based on the flow capacity (measured in LPH or Liters Per Hour) and the TDS (Total Dissolved Solids) level of the source water. A standard 1000 LPH RO Plant will cost less than a high-TDS seawater desalination system. For an accurate quote, it is best to provide a water analysis report to your RO plant manufacturer.

2. How can I extend the life of my RO membranes?

To prevent frequent membrane fouling, you must maintain an effective pre-treatment system. This includes:

• Using antiscalant chemicals to prevent mineral buildup.

• Replacing micron cartridges and sand filter media regularly.

• Scheduling a professional RO membrane cleaning service whenever the flow rate drops by 10%.

3. What is the difference between a commercial and an industrial RO System?

The main difference lies in the duty cycle and durability. A commercial RO system is often designed for light use (like restaurants or small offices), while an Industrial RO plant is built with heavy-duty stainless steel pumps and membranes designed for 24/7 continuous operation in factories and power plants.

4. Why is the “Recovery Rate” important for my factory?

The recovery rate tells you how much clean water you get versus how much goeas to waste. A high-efficiency high-capacity RO system typically has a recovery rate of 60% to 75%. Improving your recovery rate reduces your water bills and lowers the load on your wastewater treatment system.

5. What is included in an RO Plant AMC (Annual Maintenance Contract)?

An RO plant AMC typically covers routine visits, sensor calibration, pump health checks and pressure monitoring. Regular maintenance is the most effective way to reduce RO plant running costs and prevent unexpected production downtime.

6. Can an Industrial RO plant remove bacteria and viruses?

Yes, Reverse Osmosis is highly effective at removing biological contaminants. However, for 100% safety in industries like Pharmaceuticals or Food and Beverage, we recommend adding a UV Sterilizer or Ultrafiltration (UF) as a post-treatment stage.

Have a specific technical question? Contact Us : +91 98251 83643 / +91 70439 99563.

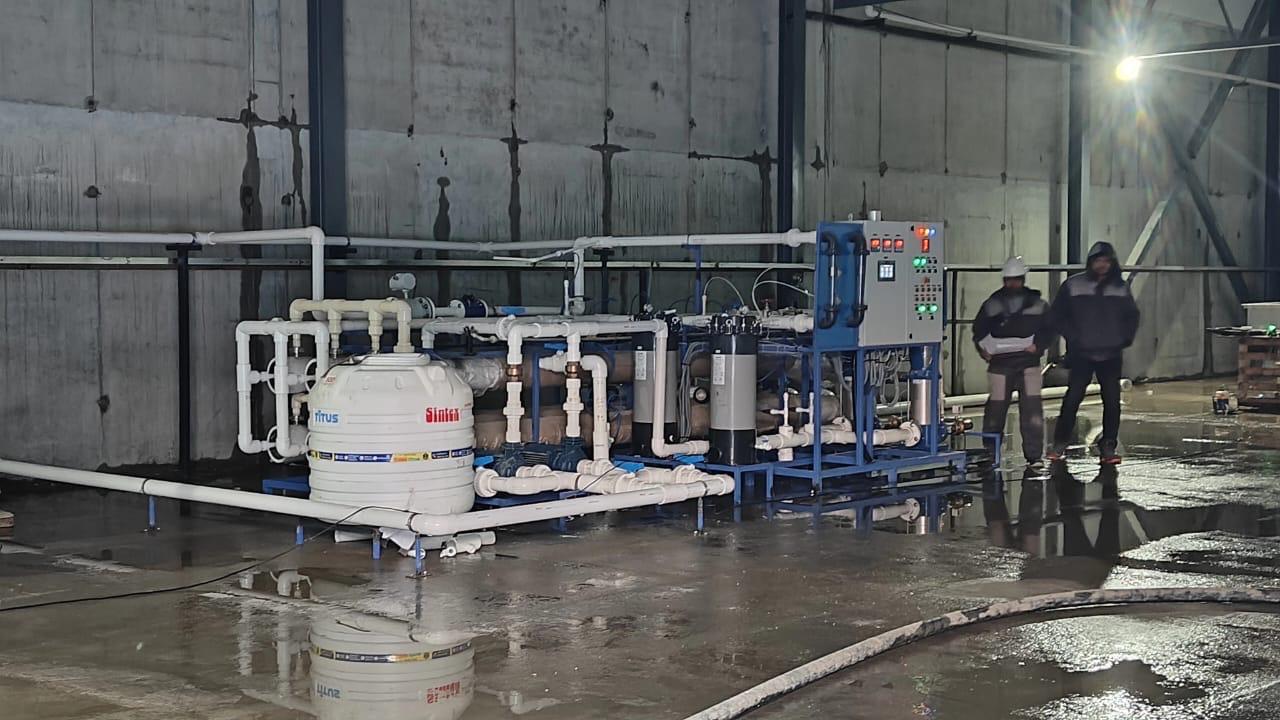

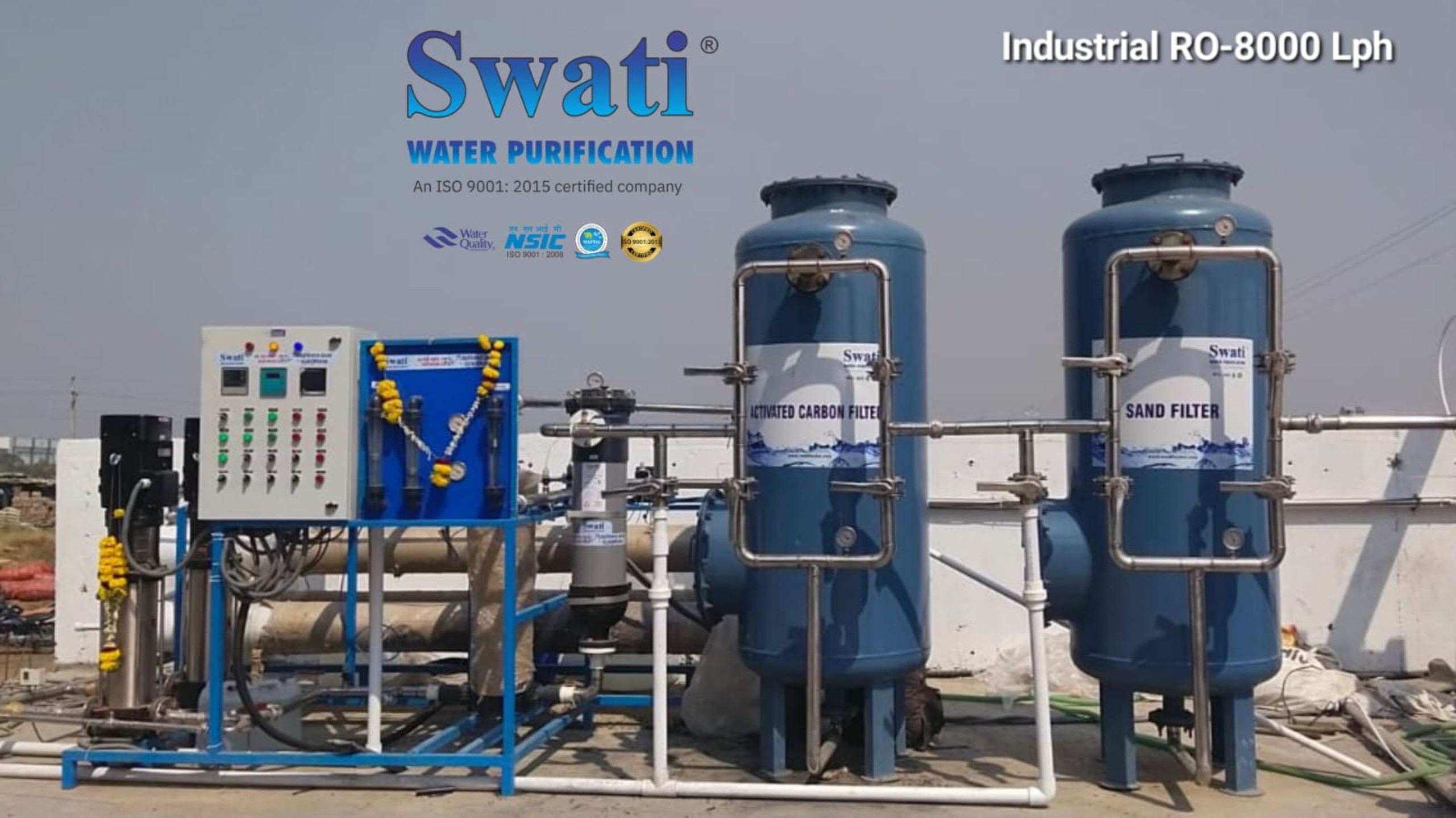

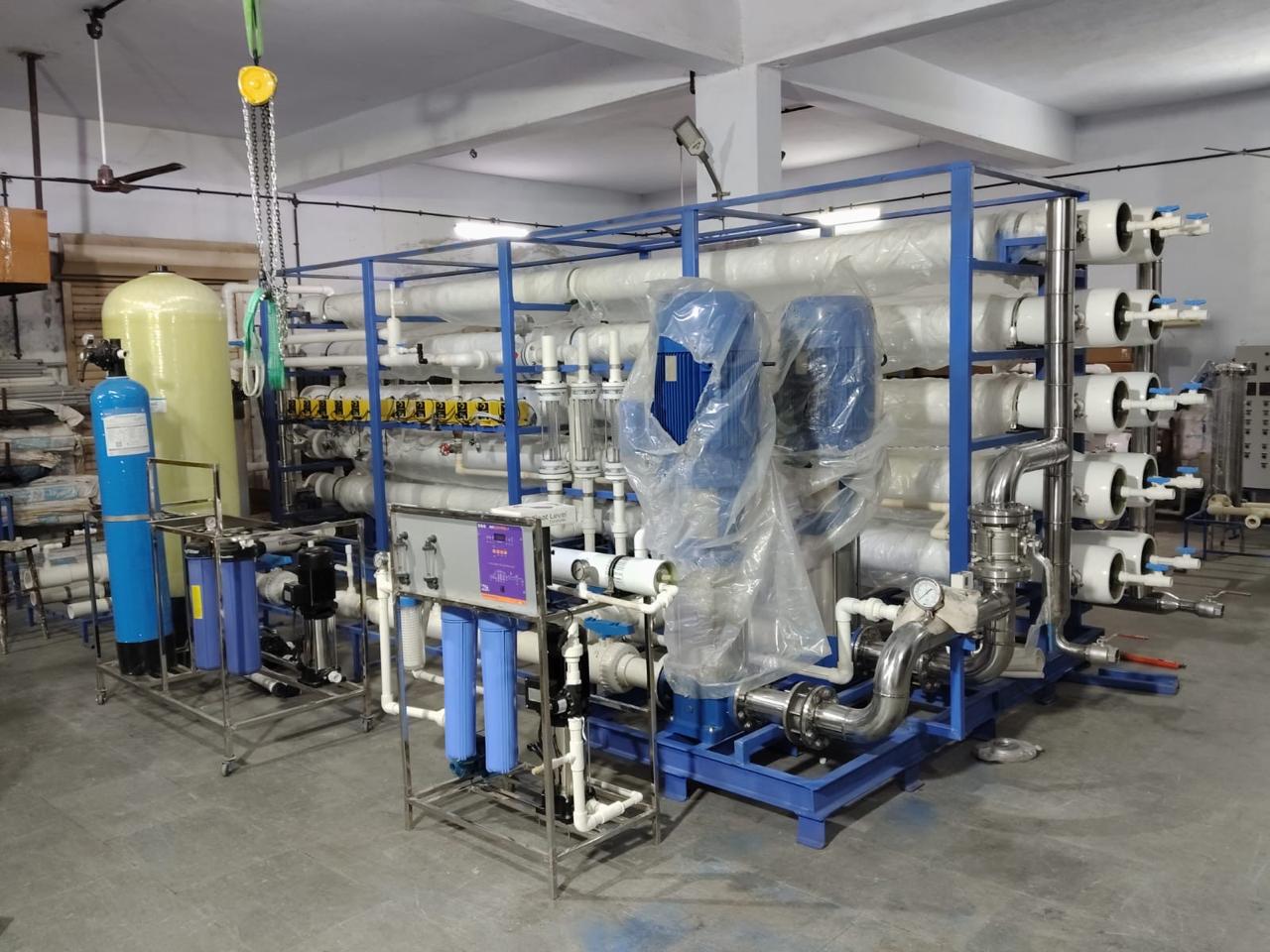

Images We Installed

RO Plant-8000 lph (8.0M3/Hr) @ Pune, Maharashtra
